material flow PRODUCT OF THE YEAR 2024

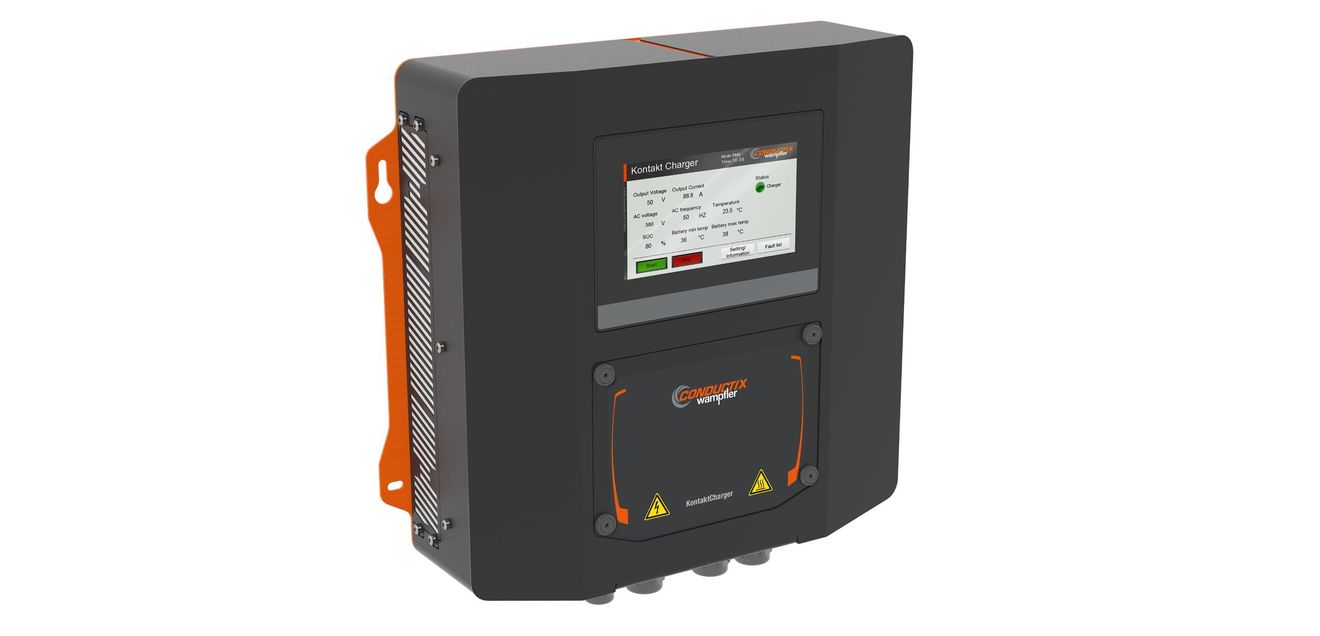

Category 3: Conductix-Wampfler - ContactCharger
With two voltage ranges and three power classes each, the KontaktCharger covers a wide range of applications. The application range of the KontaktCharger includes both 24 V applications and 48 V applications, each with 3 different power classes. This means that charging capacities from 2 kW to a powerful 9 kW can be covered.
<<Click hereto vote>>
Technology and efficiency
The device is operated via a color, graphic control panel (touch screen) in the upper front area of the housing. The operating menu follows a hierarchical structure consisting of a start/status page and setting pages for the various operating modes and error displays. Either the standard CAN 2.0B or the standard CANopen are available as communication interfaces to the battery. Battery information is also shown on the charger display in BMS operating mode. As an alternative to the active exchange of information via CAN interfaces, the KontaktCharger can also be started and stopped manually or via a simple pilot contact function.
In manual operating mode, the charging current and end-of-charge voltage are preset via the menu; in automatic or BMS mode, the charging parameters are set by the battery management system. All electrical interfaces are located under a maintenance cover on the front of the device and are easily accessible via four quick-release fasteners. The KontaktCharger is designed for indoor use with a permissible ambient temperature of 5°C to 40°C. In the temperature range above 30°C, the output of the KontaktCharger is gradually reduced (de-rating) to protect against overheating. The maximum reduction at 40°C is approx. 10% of the rated power. The KontaktCharger has active fan cooling, with the air flowing horizontally through the device.
<<Click hereto vote>>
Unique selling points
In combination with its own Li-ion batteries, charging contacts and conductor rails as well as wireless SIL 3 -PLe emergency stop systems (RadioSafe), Conductix-Wampfler's KontaktCharger offers a comprehensive and coordinated range of solutions for medium-sized IMRs, AGVs or rail-bound self-propelled vehicles, also known as transfer cars. - Simple and straightforward set-up menu on a color touch panel - Very short start-up time - perfect for occasional charging - Multiple communication interface options, CAN 2.0B, CANopen - High charging efficiency. Efficiency > 90 percent.
<<Click hereto vote>>
